2.0mm Fiber Optic Patch Cord

Место происхождения	Китай
Фирменное наименование	Dawnergy

Детали продукта

Тип волокна:

СМ (G652D)

Волокно -ядра:

Симплекс или Дуплекс

Укрепить член:

Кевлар

Условия оплаты & доставки

Упаковывая детали

Картонная коробка

Условия оплаты

Л/К, Д/А, Т/Т, Д/П, западное соединение

Описание продукта

2.0mm Fiber Optic Patch Cord

Dawnergy’s fiber optic patchcords are used for connecting the device through different connectors.

Features

l Low insertion loss

l High return loss

l Good repeatability

Applications

l Telecommunication networks

l CATV networks

l FTTx project

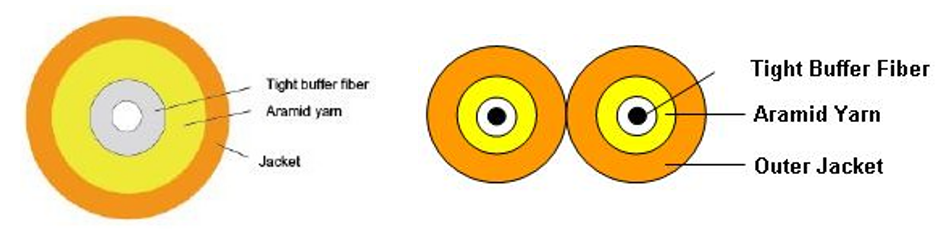

Optical Cable Drawing

Patchcord Specifications

Parameters	Specifications
Fiber Type	SM (G652D)
Fiber Spec	Mode field diameter (MFD): At 1310 nm: 9.2 μm ± 0.4 μm At 1550 nm: 10.4 μm ± 0.8 μm Cladding diameter: 125 μm ± 0.7 μm Core concentricity error: ≤ 0,6 μm
Insertion Loss (dB)	≤ 0.3 (max)
Return Loss (dB)	≥ 50 (UPC)
Operating Wavelength Range	Single-mode: 1310 nm to 1550 nm
Connector Type (with dust cap)	FC/UPC-FC/UPC FC/UPC-SC/UPC SC/UPC-SC/UPC SC/UPC-LC/UPC FC/UPC-LC/UPC
Connector Color	TIA-568-C.3 standard
Fiber Cores	Simplex or Duplex
Outer Dimension	2mm ± 2%
Strengthen Member	Kevlar
Material of Outer Jacket	Yellow LSZH
Bending radius	≥ 3 cm
Cable Length	3, 5,10,15,20m ± 2%
Durability (dB)	△IL≤ 0.1, 200 times plugging
Tension	≥ 90 N
Crush resistance	≥ 500 N
Operating Temperature Range (℃)	-10 ~ +60
Guaranteed	≥ 15 years

The patch cord shall be clearly and fully marked with the following information: cable type, cable length (or meter marking of the cable reel), and manufacturer’s name.
